Portable Outdoor Advertising & Event Screen Solutions
In an era where live entertainment and dynamic advertising dictate modern culture, standing out requires an innovative visual edge. Therefore, the LED Mobile Trailers by Jumbotron is the ultimate turnkey solution for event organizers, advertisers, and venues looking to make a massive impact.
These cutting-edge, towable displays blend unmatched portability with high-resolution visual power, transforming how you connect with your audience. For example, whether you are hosting a temporary outdoor event or hosting setting up a roadside marketing campaign, learn why mobile LED trailers are the ultimate solution for dynamic advertising across the US. However, if you are looking for permanent or custom-built displays rather than temporary mobile setups, explore our full inventory of Jumbotron for sale options.”
Mobile LED trailer screens are one of the fastest-growing solutions for live events, sports venues, digital scoreboards, concerts, roadside advertising, and community gatherings. In fact, built for rapid deployment, a single operator can set up and deploy the entire system in under 15 minutes using an intuitive remote control.
Get email from OAAAÂ about Out of Home Advertising
Our latest trailer models feature German-made ALKO chassis paired with high-definition LED displays. Additionally, featuring advanced hydraulics with 360-degree rotation, up to fifteen feet of lift, and a 180-degree fold-in-half screen design. Therefore, our Jumbotron trailers are exceptionally easy to transport, park, and store.
True Daylight Visibility: Unlike traditional projectors that wash out in direct sunlight. Jumbotron screens feature extreme high-brightness technology. Consequently, your screen remains fully visible even under direct sunlight.Â
Effortless Hydraulic Setup: Adjust screen height and angle with precision. Moreover, the 360-degree rotation and 15 feet of vertical lift can pivot the screen as the crowd flow changes.
Rugged, Weatherproof Durability: Built with commercial-grade materials, our trailers withstand harsh weather conditions. As a result, you get uninterrupted performance, rain or shine.
4K Resolution: Not only do our screens handle harsh weather, but they also offer crystal-clear 4K resolution.
Double-Sided Options: Drive maximum revenue with double-sided trailer configurations featuring high-density 8mm pixel pitch displays ideal for two-way roadside advertising.
Turnkey Power Solutions: Furthermore, whisper-quiet electric setups and integrated diesel water-cooled generators (up to 50 KW) keep your event powered without distracting background noise.
To support your team, at Jumbotron Screens LLC., we provide full-service support from initial concept through setup and post-event technical assistance:
Consulting & Project Planning: We analyze your venue goals to select the exact screen size (up to 22′ x 12′) and specs for your environment.
Custom Sales & Fabrication: Built with tandem or single axles, electronic brakes, radial tires, and breakaway safety kits conforming to US and Canadian standards.
Installation & Training: Additionally, our team trains your staff on video processors, switching systems, and safe hydraulic operation.
Nationwide Support: Specifically, supported by a nationwide network of qualified technicians for fast deployment and prompt ongoing service.
| Model Name | FAB–P4.4 | FAB–P5.7 | FAB–P6.6 | FAB–P8 | FAB–P10 | FAB–P13.3 |
|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 4.4 | 5.71 | 6.67 | 8 | 10 | 13.3 |
| Pixel Density (dot/m²) | 50,625 | 30,625 | 22,500 | 15,625 | 10,000 | 5,625 |
| LED Sealing Type | SMD1935 | SMD2727 | SMD2727 | SMD3535 / SMD2727 | SMD2727 | |
| Module Resolution (PX) | 108 x 72 | 84 x 56 | 72 x 48 | 60 x 40 | 48 x 32 | 36 x 24 |
| Drive Mode | Constant Current | |||||
| Brightness (cd/m²) | 6,000 – 8,000 | 6,000 – 10,000 | ||||
| Grey Scale (bit) | 14 – 16 | |||||
| Refresh Rate (Hz) | 7,680 | |||||
| Horizontal Viewing Angle (Deg) | 160° | |||||
| Vertical Viewing Angle (Deg) | Upward 20° Down 50° |
Upward 20° Down 60° |
Upward 30° Down 60° |
Upward 15° Down 50° |
||
| Max Power Consumption (W/m²) | 650 ± 5% | 600 ± 5% | 600 ± 5% | 600 ± 5% | 600 ± 5% | 570 ± 5% |
| Average Power Consumption (W/m²) | 195 | 180 | 180 | 180 | 180 | 170 |
| Module Size (mm) | 480 x 320 x 24 | 480 x 320 x 24 | 480 x 320 x 24 | 480 x 320 x 24 | 480 x 320 x 24 | 480 x 320 x 26.5 |
| Module Weight (kg) | 2.3 | |||||
| Cabinet Size (mm) | 960 x 640 / 960 x 960 / 960 x 1,280 / 1,440 x 960 / 1,440 x 640 | |||||
| Cabinet Weight (Kg/m²) | 26 | |||||
| Cabinet Thickness (mm) | 78 | 78 | 78 | 78 | 78 | 80.5 |
| Input Voltage (V) | AC 110 – 240V | |||||
| Working Temperature (℃) | – 40 ~ + 55℃ | |||||
| Storage Temperature (℃) | – 40 ~ + 60℃ | |||||
| Working Humidity (RH) | 10% ~ 95% RH | |||||
| Storage Humidity (RH) | 10% ~ 70% RH | |||||
| Maintenance Type | Front / Rear | |||||
| Life Span | >100,000 hours | |||||
| Ingress Protection | IP68 / IP66 | |||||
| Working Environment | Outdoor | |||||
| Certificates | CE(LVD, EMC), ETL, 3C, CB, FCC, PSE, RoHS, UL, TÜV | |||||
| Model Name | FAB–PTF3.9 | FAB–PTF4.8 |
|---|---|---|
| Pixel Pitch (mm) | 3.91 | 4.81 |
| Pixel Density (dot/m²) | 65,536 | 43,264 |
| LED Sealing Type | SMD1935 | SMD1935 |
| Module Resolution (PX* PX) | 128*64 | 104*52 |
| Module Size (mm * mm) | 500*250 | 500*250 |
| Module Weight (kg) | 1.7 | 1.7 |
| Module Thickness (mm) | 20 | 20 |
| Contrast Ratio | 13,000:1 | 13,000:1 |
| Horizontal Viewing Angle (Deg) | 160° | 160° |
| Vertical Viewing Angle (Deg) | 90° | 90° |
| Brightness (cd/m²) | 3,000/4,000/5,000/6,000(Copper Wire) | 5,000/6,000/7,000/8,000(Golden Wire) |
| Max Power Consumption (W/m²) | 325±5%/430±5%/540±5%/650±5% | 410±5%/490±5%/570±5%/650±5% |
| Average Power Consumption (W/m²) | 98/129/162/195 | 123/147/171/195 |
| Grey Scale (bit) | 14–16 | |
| Refresh Rate (Hz) | 3,840–7,680 | |
| Cabinet Size (mm * mm) | 1,000*500/1,000*750/1,000*1000/1,500*500/1,500*750/1,500*1000 | |
| Cabinet Thickness (mm) | 81.5 | |
| Cabinet Weight (Kg/m²) | 27 | |
| Input Voltage (V) | AC100–240V | |
| Working Temperature (℃) | −40~+55℃ | |
| Working Humidity (RH) | 10%~95%RH | |
| Storage Humidity (RH) | 10%~60%RH | |
| Storage Temperature (℃) | −40~+60℃ | |
| Maintenance Type | Front/Rear | |
| Installation Type | Front/Rear | |
| Life Span | >100,000 hours | |
| Controlling System | Sychronous/Asynchronous | |
| Ingress Protection | IP66 | |
| Certificates | CE(LVD、EMC), CB, FCC, ETL | |
A mobile LED trailer is a fully road-legal vehicle that requires a license when operated on public roads. Specifically, it consists of a single or dual-axle chassis integrated with an LED display and a hydraulic lift system for effortless 360-degree rotation and 180-degree folding. In addition, the display operates seamlessly on shore power, electric hookups, or onboard diesel generators. Furthermore, customers can request integrated audio systems and other custom optional equipment to suit their event needs.
Pricing varies depending on key specifications such as screen dimensions, pixel pitch resolution, generator capacity, and custom hydraulic configurations. However, we work within various budget levels and offer custom-built trailers along with flexible financing options to fit your project.
The most popular resolutions include P3.91 for high-density clarity, P6.67 for general outdoor viewing, as well as P10 for budget-minded customers looking for maximum ROI.
No, quite the opposite. The smaller the pixel pitch measurement, the shorter the distance from the center of one pixel to the next, resulting in higher clarity. For example, a 10 mm (P10) screen provides 10,000 pixels per square meter, whereas a 5 mm screen features 40,000 pixels per square meter, and a P3.91 boasts 65,536 pixels per square meter. Consequently, more pixels per square meter directly produce superior image sharpness and overall video quality.

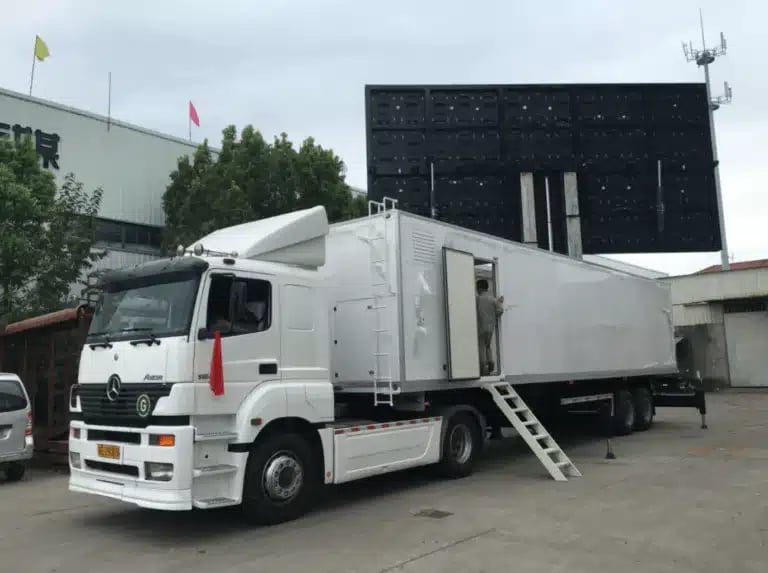

Our Jumbotron LED Mobile Trailer Trucks feature optional, super-quiet diesel water-cooled generators capable of delivering up to 50 kilowatts to power massive displays up to 30 feet wide by 16 feet high. In addition, we offer crystal-clear 4K resolution paired with a dual hydraulic mast that supports 360-degree rotation and 180-degree folding. Furthermore, each unit includes four sturdy support legs and an integrated sound system with waterproof speakers. As a result, these trucks are perfect for concerts, outdoor events, and high-impact advertising campaigns.
Ready to elevate your next event or advertising campaign? Contact the Jumbotron project management team today for a detailed estimate.
